IMPROVED WET ABILITY: The heat exchanger aluminium plates which have a special coating with a hydrophilic layer, ensuring rapid removal of condensate from the indoor unit that does not allow to quickly form of mould and bacteria, providing a more efficient operation of the air conditioner.
Air purification system is provided with a high-efficiency air conditioner ioniser that produces millions of negative ions that neutralise all the harmful elements present in your home. Negatively charged ions attract the dust particles, bacteria, mould spores and viruses, neutralise them, supporting freshness of the air in the room.
Essential info
Ultra energy efficient with an A++ rating
Perfect for home, office and commercial use
5 - in-1: Cooling, Heating, Fan, Dehumidifying and Air Purifier
EasyFit
Really powerful but quiet in operation

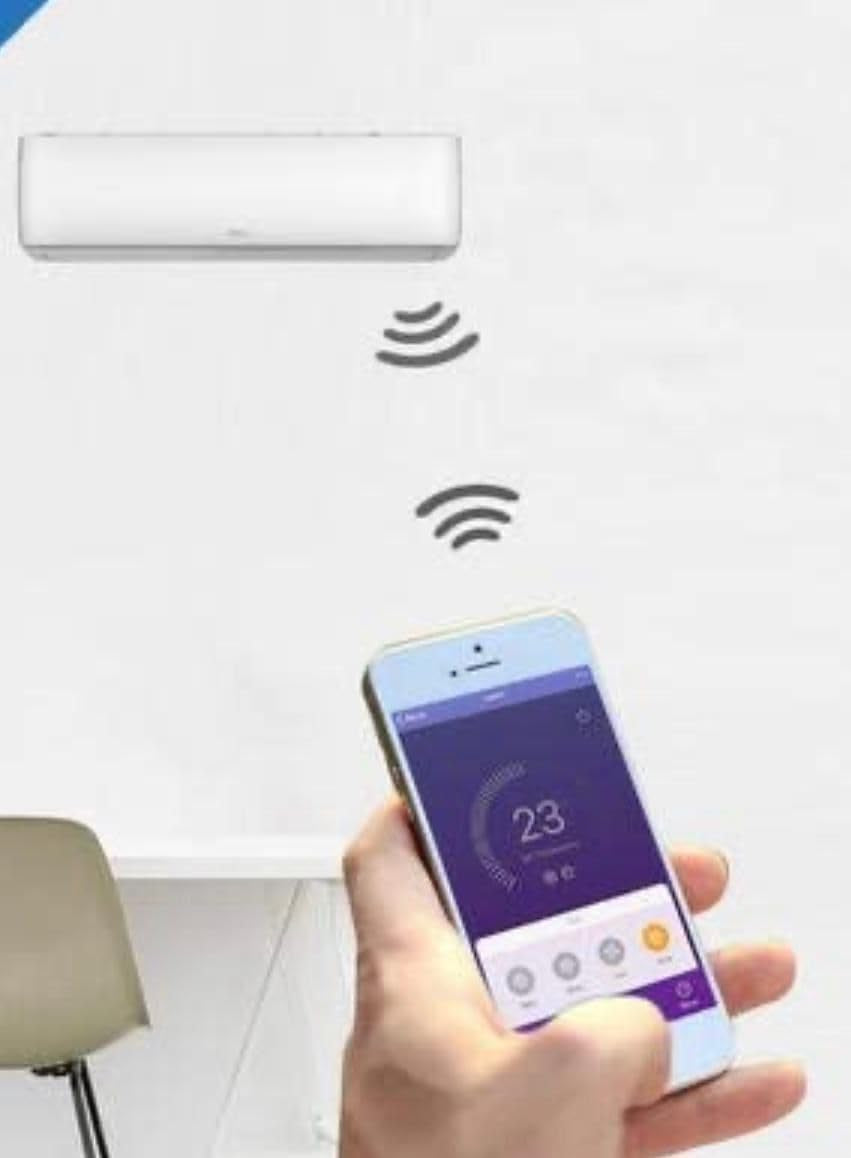

Manage temp & schedule via smartphone for ultimate control
Year-round use: cool, heat, dehumidify & clean air purify with ease
Dehumidify & remove excess moisture for added comfort
A++ rated for efficient cooling & heating all year
Powerful 18000 BTU for cooling large areas
Perfect for using at night when sleeping
Self-clean function & blue fins for low maintenance costs
Air Flow (M3/h): 800
Rated capacity Cooling (W): 5100 (1250-5910)
Rated capacity Heating (W): 5100 (1250-6070)
Power Input Cooling (W): 1580 (330 - 2340)
Power Input heating (W): 1374 (340-2520)
Current input Cooling (A): 8.1 (1.7-12.0)
Current input Heating (A): 7.0 (1.7- 13.0)
Standby mode (W): 2
Refrigerant type/weight: R32/1KG
A++ Rating (ERP Certified)

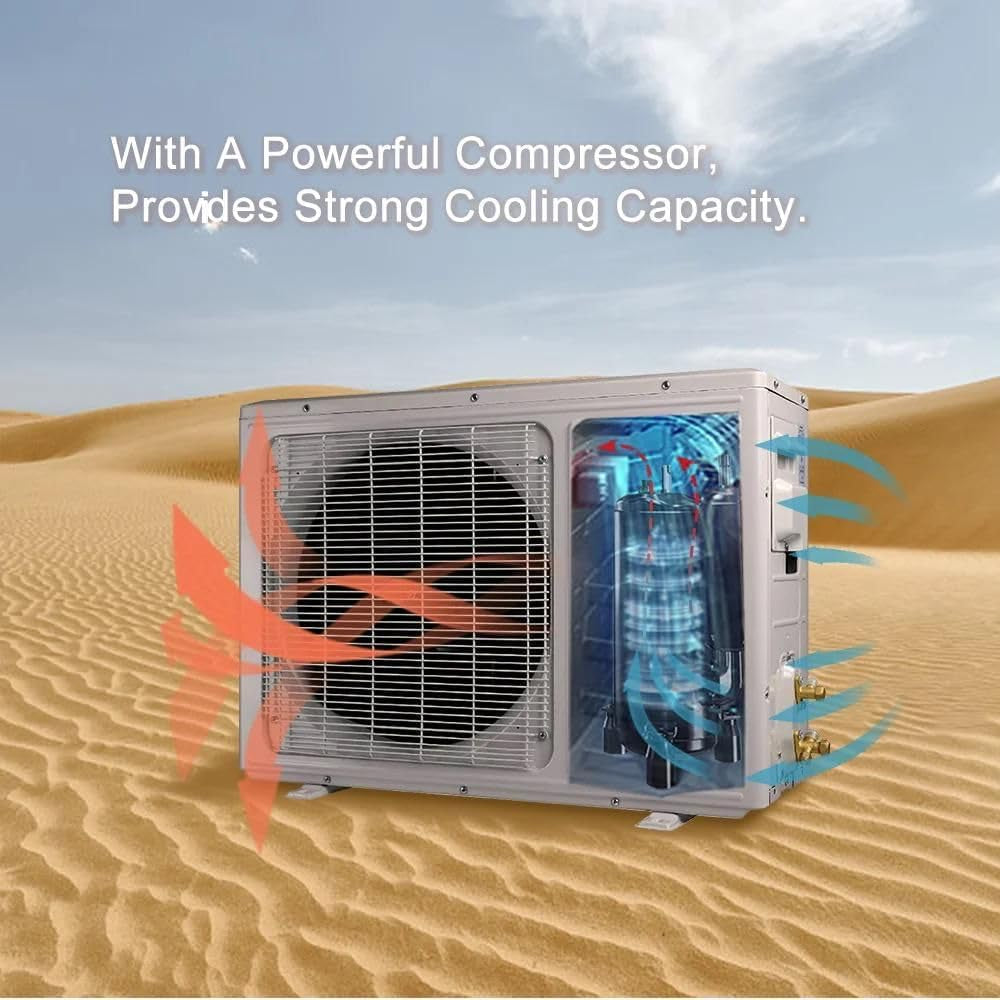

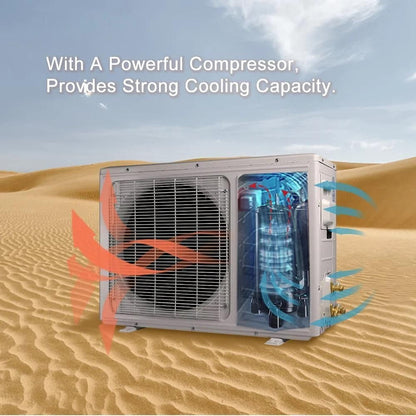

Super DC Inverter with GMCC Compressor
Cooling, Heating, Air Purifier & Dehumidifying
Easy Fit with pipe and cable kit supplied as standard
Energy Saving Inverter Technology
Heat Pump for efficient heating
Ultra-Quiet Operation
Digital White Led temperature and function display
24 Hour Timer
Self-diagnostic function
Save energy by using the ECO mode
Auto Restart when electricity is restored after a power cut
Installed with filters to remove odours, dust and pollen

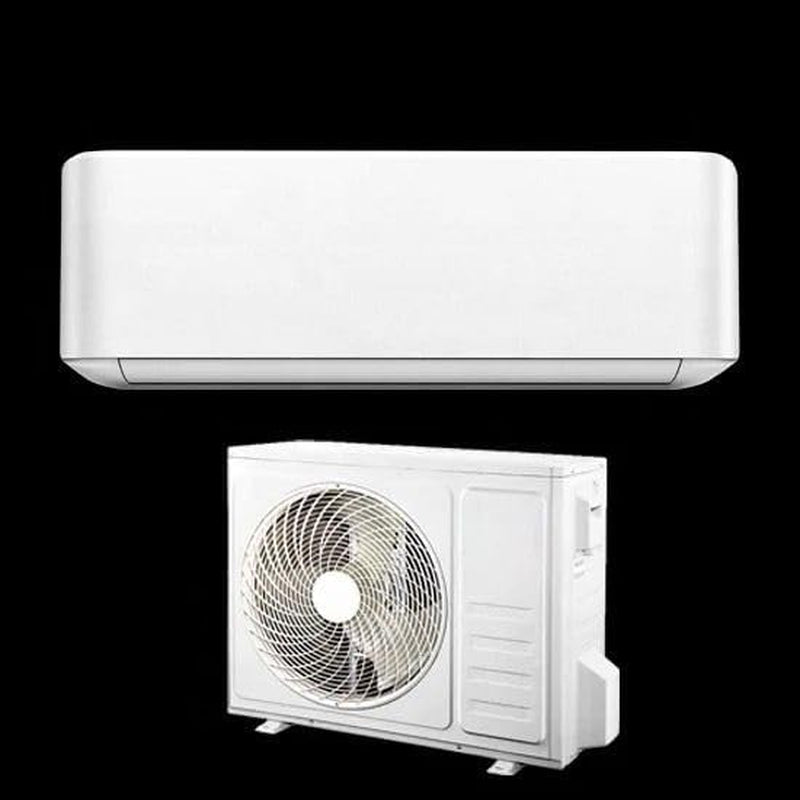

Installation: Easy fit wall mounted

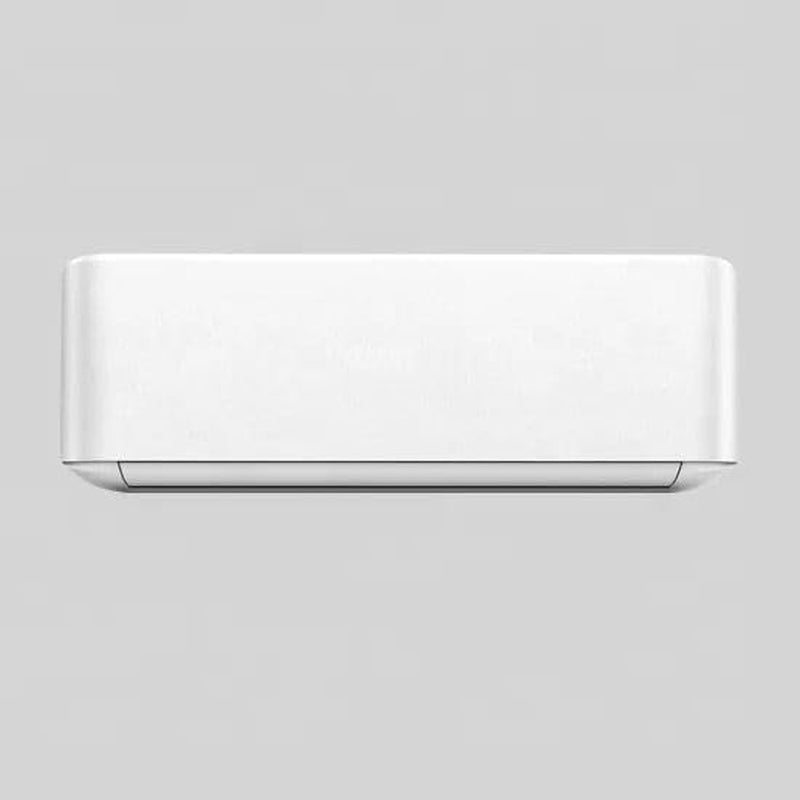

Type: Wall mounted
Pre-Gassed
Split Type: Split
Cooling Power (BTU): 18,000
Cooling Power (kW) 8.1 kW
Energy Rating: A++
Power Supply (V/hz): 220-240V/50hz
Colour: White
Condition: New
5 IN 1 Features Fan, Cooler, Dehumidifier,
Heating and Air Purifier
WiFi Built-in
Suitable For: Home Office
Type: Cooler, Heater, Dehumidifier, Air Purifier, Fan
Control type: Remote Control Wi Fi
Declared cooling capacity W:
5100(1250-5910)
Declared heating capacity W:
5100(1250-6070)
Pdesignc W: 5100
SEER declared W/W: 6.1
Energy Class: A++
EER declared W/W: 3.23
COP declared W/W: 3.71
Pdesignh Average TDS W: 3800
SCOP Average declared W/W: 4.0
Energy Class(Average): A+
Declare capacity(-10℃) W: 3600
Back up heating capacity(-10℃)W:200
Pdesignh warmer TDS W: 5000
SCOP Warmer declared W/W: 5.1
Energy Class(Warmer): A+++
Declare capacity (2℃) W: 5000
Back up heating capacity (2℃) W: 0
Annual energy consumption Cooling kwh/a: 293
Average kwh/a: 1330
Warmer kwh/a: 1373
Moisture removal Liters/h: 1.5
Indoor sound power(S/H/M/L/Mute) dB(A): 53/50/47/43/36
Outdoor sound power dB(A): 65
Indoor sound pressure(S/H/M/L/Mute): dB(A) 43/41/38//35/27
Outdoor sound pressure dB(A): 55
Electrical Data
Power supply: 220-240V~/50Hz/1P
Power supply side: Outdoor
Voltage Range V: 165~265
Operating current Cooling A: 8.1(1.7~12.0)
Heating A: 7.0(1.7~13.0)
Power consumption Cooling W:
1580(330-2340)
Heating W: 1374(340-2520)
Refrigerating System
Refrigerant type/Charge/GWP/CO2 equivalent: R32/1kg/675/0.675tonnes
Compressor Type: Rotary
Model: KSN140D33UFZ3
MFG: GMCC
Indoor air circulation Cooling/heating m3/h: 800/800
Indoor fan type: Cross Flow
Indoor fan speed S/H/M/L/Mute Cooling rpm: 1400/1260/1050/870/800
Heating rpm: 1400/1260/1050/870/800
Dry rpm: 870
Outdoor fan type: Propeller fan
Outdoor air circulation m3/h: 2600
Outdoor fan speed(S/H/M/L/Mute) rpm
Cooling: 910/830/710/630/450
Heating: 910/830/710/630/450"
Connections
Connecting Wiring Core x Size: 4×0.75mm²
Expansion device: Capillary
Connecting Pipe Gas Inches: 3/8 inch
Liquid inches 1/4 inch
Others
Application area m²: 20~35
Max. refrigerant pipe length m: 25
Max. difference in level m: 10
Operation temperature range ℃: 16-31
Ambient temperature range Outdoor ℃:
Cooling:-15-53/ Heating:-20-30
Indoor ℃ Cooling: 17-32/ Heating:0-30

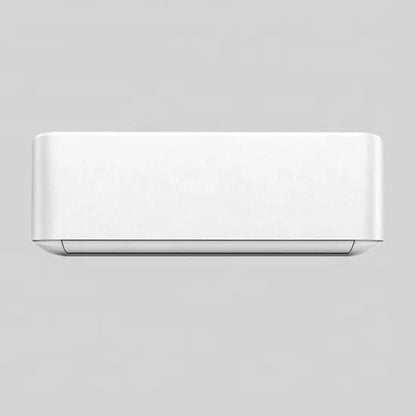

Net Indoor dimensions (W x H x D) mm: 910×294×206

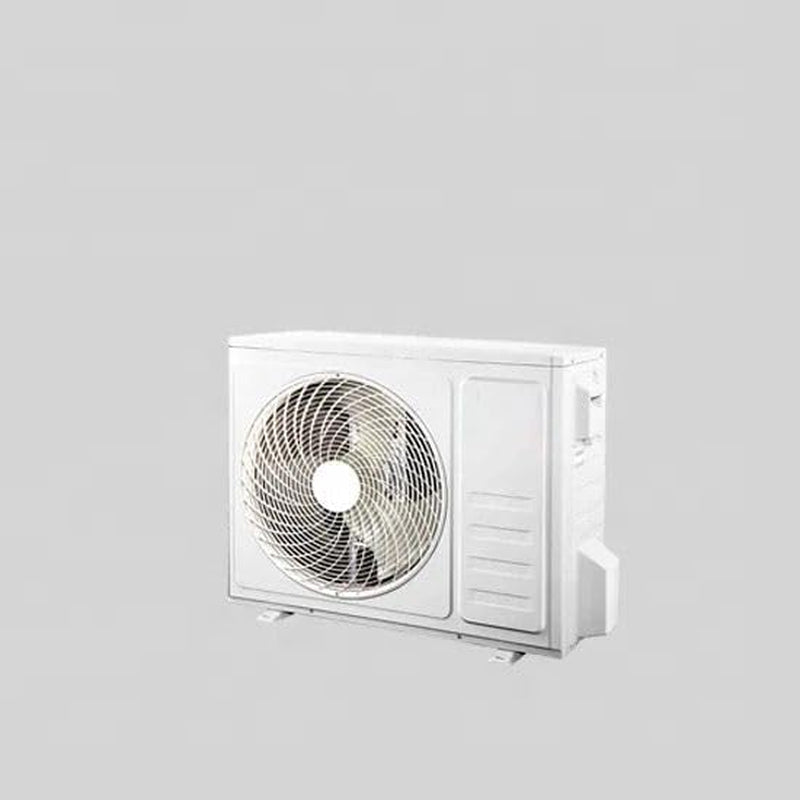

Net Outdoor dimensions (W x H x D) mm: 853×602×349
Packing dimensions Indoor (W x H x D) mm: 979×372×277
Packing dimensions Outdoor (W x H x D) mm: 890×628×385
