Improved wet ability of the heat exchanger aluminium plates which have a special coating with a hydrophilic layer, ensuring rapid removal of condensate from the indoor unit that does not allow to quickly form of mould and bacteria, providing a more efficient operation of the air conditioner.
Air purification system is provided with a high-efficiency air conditioner ioniser that produces millions of negative ions that neutralise all the harmful elements present in your home. Negatively charged ions attract the dust particles, bacteria, mould spores and viruses, neutralise them, supporting freshness off the air in the room.
Essential info
Power Supply: 220-240V~ 50Hz, 1Ph
Air Flow (M3/h): 980
Rated capacity Cooling (W): 6810 (1830~7800)
Rated capacity Heating (W): 6870 (1850~7900)
Power Input Cooling (W): 2257 (410~2824)
Power Input heating (W): 2063 (420~3005)
Current input Cooling (A): 10.7 (2.3 12.3)
Current input Heating (A): 9.9 (2.3~13.5)
Standby mode (W): 2
Copper Pipe Included
Refrigerant type/weight: R32/1.14 KG
A++ Rating (ERP Certified)
Super DC Inverter with GMCC Compressor
Cooling, Heating, Fan, Air Purifier & Dehumidifying

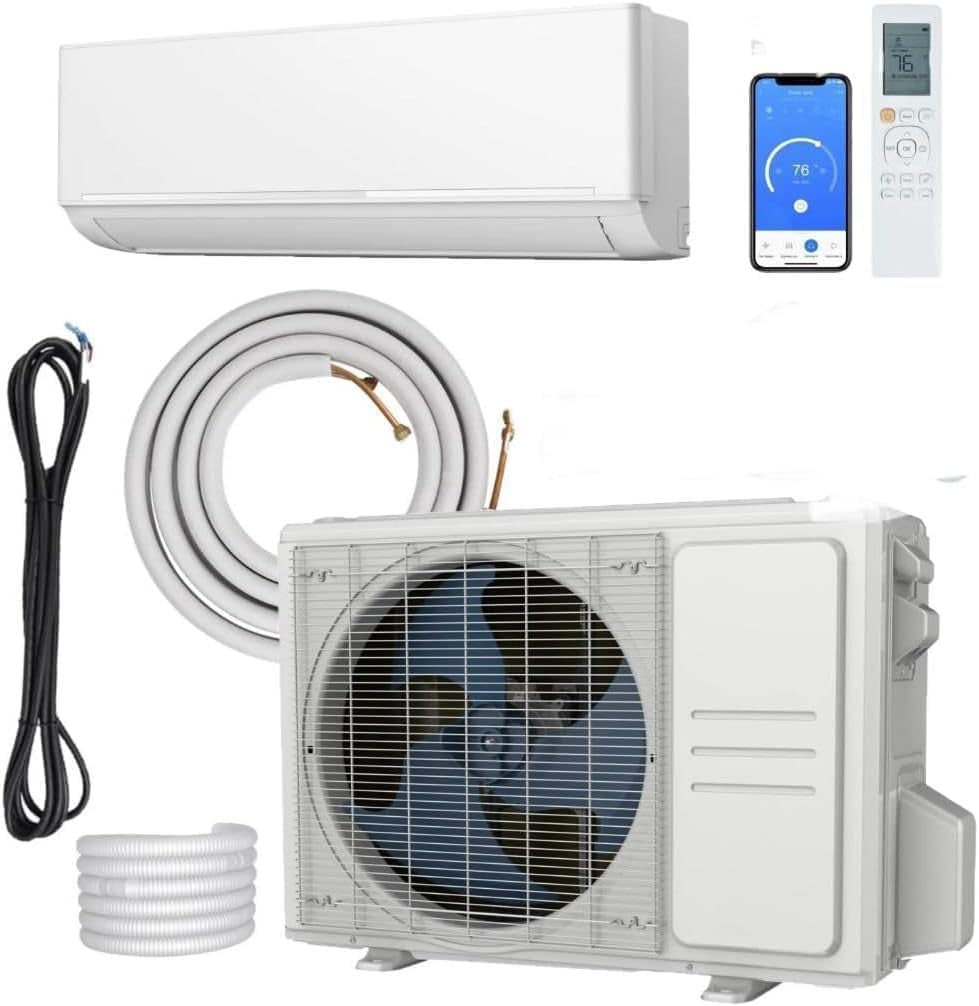

Easy Fit with pipe and cable kit supplied as standard
Energy Saving Inverter Technology
Heat Pump for efficient heating
Ultra-Quiet Operation
24 Hour Timer
Self-diagnostic function
Save energy by using the ECO mode
Auto Restart when electricity is restored after a power cut
Installed with filters to remove odours, dust and pollen
Installation: Easy fit wall mounted
Type: Wall mounted
Pipe Kit Included
Pre-Gassed
Split Type: Split
Cooling Power (BTU): 24,000
Cooling Power (kW): 6.8 kW
Energy Rating: A++
Power Supply (V/hz): 220-240V/50hz
Colour: White
Condition: New
5 In 1 Features Cooler, Fan, Dehumidifier, Heating and Air Purifier
WiFi Built-in
Suitable For: Home Office Work
Type: Heat, Cool, Dehumidify, Fan, Air Purify
Control type: Wi Fi App, Remote Control
Declared Cooling Capacity W: 6810(1830~7800)
Declared heating capacity W: 6870(1850~7900)
Pdesignc W: 6800
SEER declared W/W: 6.1
Energy Class: A++
EER declared W/W: 3.11
COP declared W/W: 3.33
Pdesignh Average TDS W: 4800
SCOP Average declared W/W: 4.0
Energy Class(Average): A++
Declare capacity(-10℃) W: 4500
Back up heating capacity(-10℃) W: 300
Pdesignh warmer TDS W: 5800
SCOP Warmer declared W/W: 5.1
Energy Class(Warmer): A++
Declare capacity(2℃) W: 5800
Back up heating capacity(2℃) W: 0
Annual energy consumption Cooling kwh/a: 390
Average kwh/a: 1680
Warmer kwh/a: 1592
Moisture removal Liters/h: 1.8
Indoor sound power(S/H/M/L/Mute) dB(A): 54/51/48/44/40
Outdoor sound power dB(A): 67
Indoor sound pressure(S/H/M/L/Mute) dB(A): 44/41/38/34/30
Outdoor sound pressure dB(A): 57
Electrical Data
Power supply: 220-240V/50Hz/1P
Power supply side: Outdoor
Voltage Range V: 165~265
Operating current Cooling A: 10.7(2.3~12.3)
Heating A: 9.9(2.3~13.5)
Power consumption Cooling W: 2257(410~2824)
Heating W: 2063(420~3005)
Refrigerating System
Refrigerant type/Charge/GWP/CO2 equivalent: R32/1.14kg/675/0.770tonnes
Compressor Type: Rotary
Model: C-6RZ146H3DBF
MFG: SANYO
Indoor air circulation Cooling/heating m3/h: 980/980
Indoor fan type: Cross Flow
Indoor fan speed S/H/M/L/Mute Cooling rpm: 1250/1200/1050/950/800
Heating rpm: 1250/1200/1050/950/800
Dry rpm: 950
Outdoor fan type: Propeller fan
Outdoor air circulation m3/h: 3000
Outdoor fan speed(S/H/M/L/Mute) rpm: Cooling:930/830/690/570/450
Heating: 890/830/690/590/450
Connections
Connecting Wiring Core x Size: 4×0.75mm²
Expension device: Capillary
Connecting Pipe: Gas Inches 1/2"
Liquid Inches: 1/4"
Others
Application area m² : 27~45
Max. refrigerant pipe length m: 25
Max. difference in level m: 10
Operation temperature range ℃: 16-31
Ambient temperature range Outdoor ℃:
Cooling:-15-53/Heating:-20-30
Indoor ℃ Cooling: 17-32/Heating:0-30
Net dimensions Indoor (W x H x D) mm: 1010 × 315 × 220
Net dimensions Outdoor (W x H x D) mm: 920×699×380
Net weight Indoor kg: 13
Packing dimensions Indoor (W x H x D) mm: 1096×390×297
Packing dimensions Outdoor (W x H x D) mm: 960×732×400
