KTM Macina Chacana 294 Electric Bike

$699.99

Sale Sold out

Shipping calculated at checkout.

Size Medium 43cm

Fast, tracked shipping with free US delivery.
Easy 30‑day returns on eligible orders.
Thoughtfully chosen products, backed by helpful support.

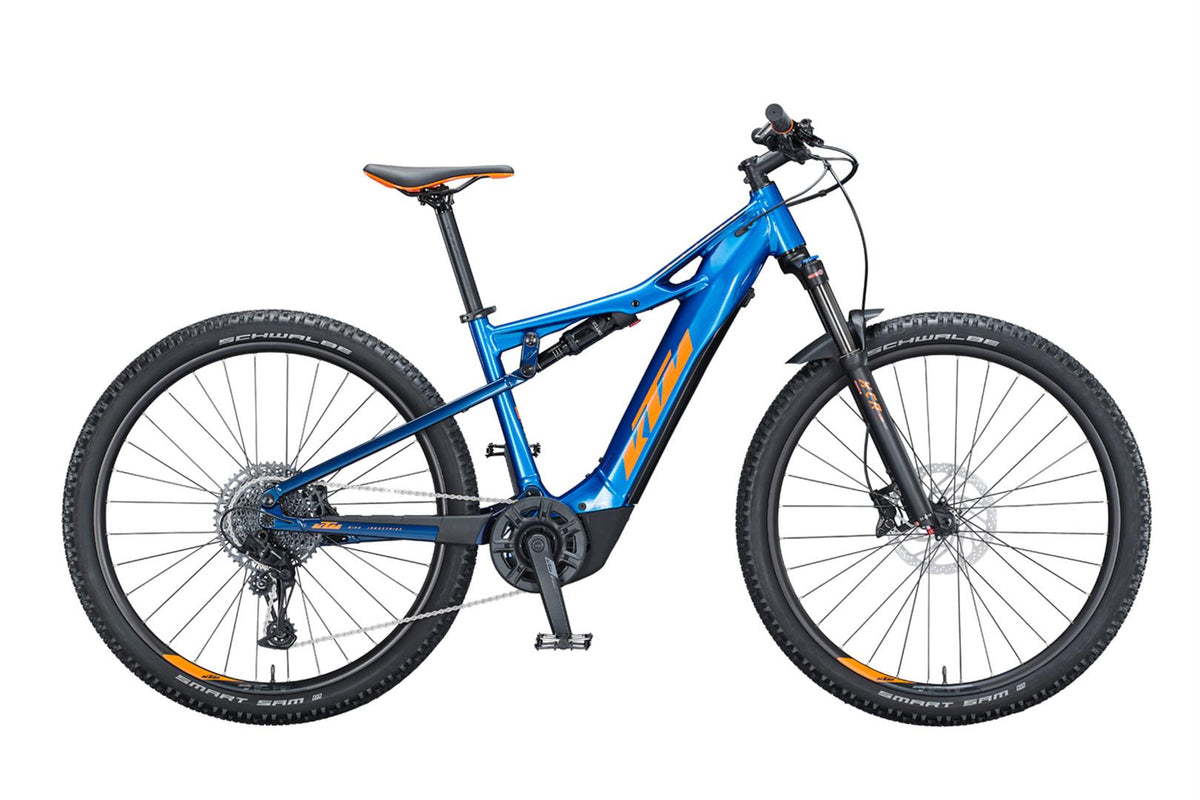

The Macina Chacana is a real electric all-mountain bike with the agility of a trail bike.

The world of uphill and downhill riding is redefined with a perfectly balanced wheelset.

The Chacana brings the 125mm eMTB into the world of 29″ wheels.

This eMTB looks awesome, thanks to the fully integrated Bosch PowerTube 500Wh. In addition, the Gravity Casting technology allows the motor to be integrated into the frame in a particularly shapely way. The Bosch CX motor is one of the most powerful on the market and considered as the current benchmark. It generates enormous power to master steep climbs.

Whether it’s big mountain riding in the Alps, crisp trails around your back yard loop, or a fast-paced after work run around the woods, with the KTM Macina Chacana you are ready to have fun on the hardest of terrain.

Max Speed: 15.5mph

Five Selectable Riding Modes:

Turbo - Maximum support up to the highest cadence for a sporty riding style.
Sport / eMTB - There is strong support for universal use for fast driving and sporty driving style.
Tour - Even support for long distance rides
Eco - Efficient support with maximum savings for the longest possible range.
Off - No support, but with access to all display functions.

Bicycle type
Mountain bike: Cross country, Marathon, Tour

Characteristics of category 3
Designed for uses; which includes uses described for categories 1, and 2, but also unpaved paths and technical areas. Jumps of up to 60cm are permitted.

Approved use
From easy to challenging terrain (small obstacles such as roots, stones, and gullies on both loose and firm ground) during cross-country or competition events. Cross-country, marathon and tour components (tyres, suspension, frame) are lightweight and designed for speed and agility.

Prohibited use
Not suitable for any extreme riding or jumps, e.g. free riding, enduro, downhill, freestyle tricks etc.

Useful facts
These bicycles are not designed or equipped for use on public roads. Before the bike is used on public roads, it must be retrofitted with lighting and fenders, etc. to comply with national laws and regulations. The safety equipment required for offroad use is supplied. It must be checked regularly and repaired by the user or specialist when necessary.

Warranty:

Frame - 5 Years
Electrical Components - 2 Years
All other Components - Fair Wear & Tear Guidance

Specification

E-SYSTEM	BOSCH PT-CX5P2
FRAME	Macina Chacana 29" Alloy6061 SLL-E 130mm; PT625 Bosch Gen.4 / M-0186
FORK	Suntour XCR 34 coil 29" LOR 130mm 15x110 taper
SHOCK	RockShox Deluxe Select 230x57.5
MOTOR	Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
DISPLAY	Bosch PURION LCD Display
BATTERY	Bosch PowerTUBE 500Wh hor.
CHARGER	Bosch COMPACT Charger 2A
R. DERAILL	SRAM SX Eagle 12speed
SHIFTLEV.	SRAM SX Eagle eClick 12
CRANKSET	KTM COMP ISIS 170mm Q16
CHAINRING	SRAM X-Sync 2 Eagle 36T Direct Mount with Chainguard
SPROCKET	SRAM SX Eagle PG-1210 / 11-50
CHAIN	SRAM NX Eagle 12s

BRAKE	Shimano MT401 / MT420 4-Piston
ROTOR	Shimano RT30 CL 203 / 180
WHEEL F	KTM Line - Shimano MT400B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
WHEEL R	KTM Line - Shimano MT400B CL 32H 148-12TA / Ryde Rival30 32H 622x30C / DT Alpine II 2.34 black
TIRE F	Schwalbe Smart Sam K-Guard 60-622
TIRE R	Schwalbe Smart Sam K-Guard 60-622
GRIP	KTM Comp Lock
BAR	KTM Comp rizer15 720mm
STEM	KTM Comp 7°
HEADSET	KTM Team MTB 1.1/8"-1.5" angle limit
SADDLE	KTM Line Sport
SEATPOST	KTM Comp 30.9/400
PEDAL	MTB-Pedal flat VPE-527 alloy
WEIGHT	24,7 kg
PERMISSIBLE TOTAL WEIGHT	143 kg
