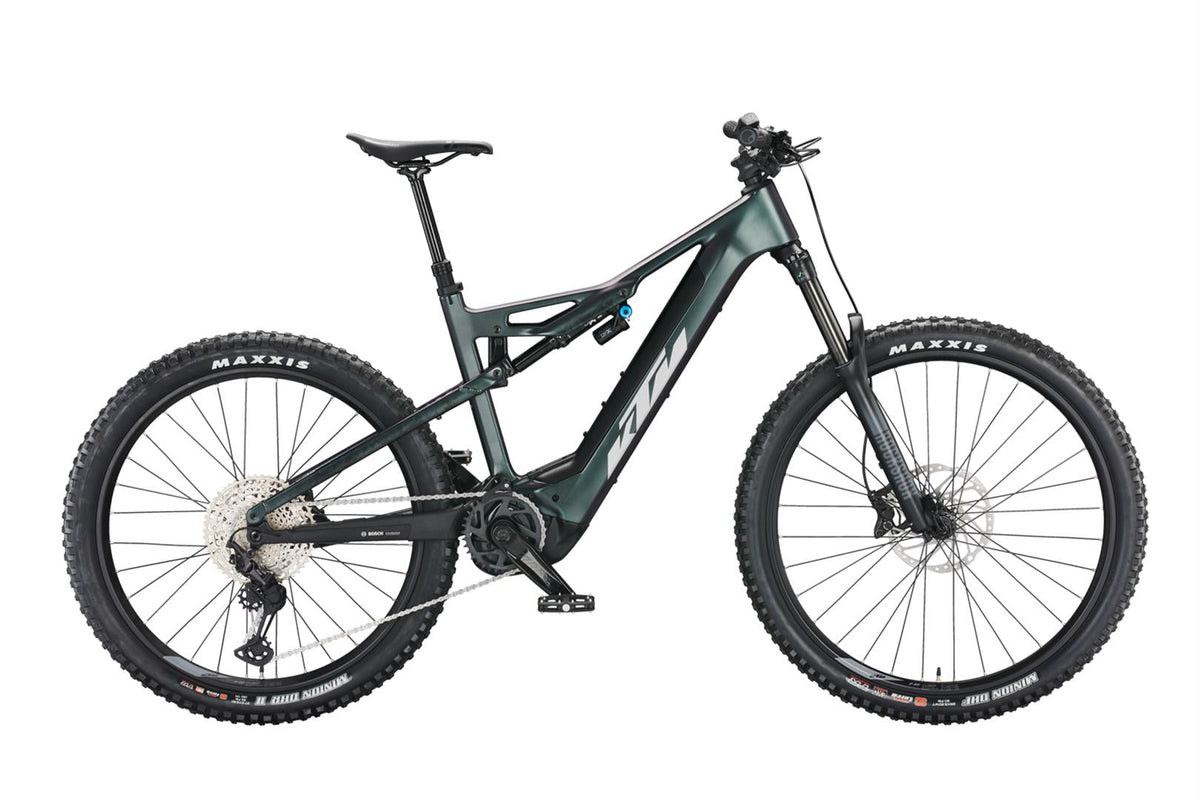

KTM Macina Kapoho Elite Electric Bike
KTM Macina Kapoho Elite Electric Bike
- Fast, tracked shipping with free US delivery.
- Easy 30‑day returns on eligible orders.
- Thoughtfully chosen products, backed by helpful support.
Couldn't load pickup availability
UPHILL. DOWNHILL. WHY NOT BOTH?
The mere thought of the breath-taking view from the top of the mountain and the subsequent descent down to the valley is enough to get your heart racing?
Then the MACINA KAPOHO with 160mm of travel is the bike you need. Whether carbon or aluminium frame, all models are fitted with the proven DiMMiX tyres: 29" wheel at the front for optimum riding stability paired with the 27,5" PLUS tyres at the rear for best power transmission and traction, show all its advantages in difficult terrain. The heart of these bikes is a newly developed frame, in combination with the proven STRAIGHT-LINE-LINK (SLL) concept and the new BOSCH SMART SYSTEM. With this self-contained BOSCH system, easily recognisable by the new control unit, you are ready for the digital future. The system also includes the KIOX 300 display, the BOSCH PERFORMANCE LINE CX motor, a 4A charger and the most powerful BOSCH POWERTUBE battery ever (750WH) for even more range. In addition, the EBIKE FLOW APP opens the door to the connected world and connects you with your bike. Thanks to the masterful work of our engineers, the proven KTM frame geometry has been retained despite the new increase in battery size and capacity. Removing and reinserting the battery is easier than ever before. POWER TUBE TOP LOADER (PTTL) is the name of KTM's own innovation for this user-friendly battery handling.
Max Speed: 15.5mph
Warranty:
- Frame - 5 Years
- Electrical Components - 2 Years
- All other Components - Fair Wear & Tear Guidance
Bicycle type
Mountain bike: Trail, All Mountain, Enduro
Characteristics of category 4
Designed for uses; which includes uses described for categories 1, 2 and 3, for restricted downhill use. Downhill riding is permitted up to a speed of 40 km/h, provided jumps do not exceed a height of 120cm. Use of a bicycle under these conditions is strongly dependent on the experience and skills of the rider.
Approved use
Bicycles in this category are more robust and solidly built than cross-country, marathon or tour mountain bikes. They are able to overcome more demanding terrain with larger obstacles and jumps due to the greater suspension travel.
Prohibited use
Areas of use that exceed the limits of the stated intended purpose.
Useful facts
These bicycles are not designed or equipped for use on public roads. Before the bike is used on public roads, it must be retrofitted with lighting and fenders, etc. to comply with national laws and regulations. The safety equipment required for offroad use is supplied. It must be checked regularly and repaired by the user or specialist when necessary.
Specification
| E-SYSTEM | BOSCH PT-CX7R4 |
|---|---|
| FRAME | Macina Kapoho Dimmix Perf. Carbon SLL-LTE 160mm UDH; PT750 Bosch Gen.4 / M-2246 |
| FORK | RockShox 35 Silver TK 29" 160mm |
| SHOCK | FOX Float X Performance 250x70 |
| MOTOR | Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm |
| DISPLAY | |
| BATTERY | Bosch PowerTUBE 750Wh hor. smart system |
| CHARGER | Bosch STANDARD Charger 4A smart system |
| R. DERAILL | Shimano Deore XT M8100-12 SGS shadow+ |
| SHIFTLEV. | Shimano Deore M6100-12 |
| CRANKSET | KTM TRAIL ISIS 160mm Q16 |
| CHAINRING | FSA Megatooth steel 36T 12speed Direct Mount |
| SPROCKET | Shimano Deore M6100-12 / 10-51 |
| CHAIN | Shimano M6100-12 |
| BRAKE | Shimano M4100 / MT420 4-Piston |
| ROTOR | Shimano RT64 CL 203 / EM600 CL 180 |
| WHEEL F | KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black |
|---|---|
| WHEEL R | KTM Line - Shimano MT410B CL 32H 148-12TA / Ambrosio E35 Trail 32H 584x35TC / DT Alpine II 2.34 black |
| TIRE F | Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622 |
| TIRE R | Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584 |
| GRIP | Ergon GE10 Evo ergonomic |
| BAR | KTM Team Trail35 rizer25 800mm |
| STEM | KTM Team Trail35 |
| HEADSET | Acros AICR internal 1.1/8>1.5" angle limit |
| SADDLE | Selle San Marco GND Supercomfort |
| SEATPOST | KTM Comp dropper internal |
| PEDAL | MTB-Pedal flat VPE-527 alloy |
| WEIGHT | 25,9 kg |
| PERMISSIBLE TOTAL WEIGHT | 145 kg |
